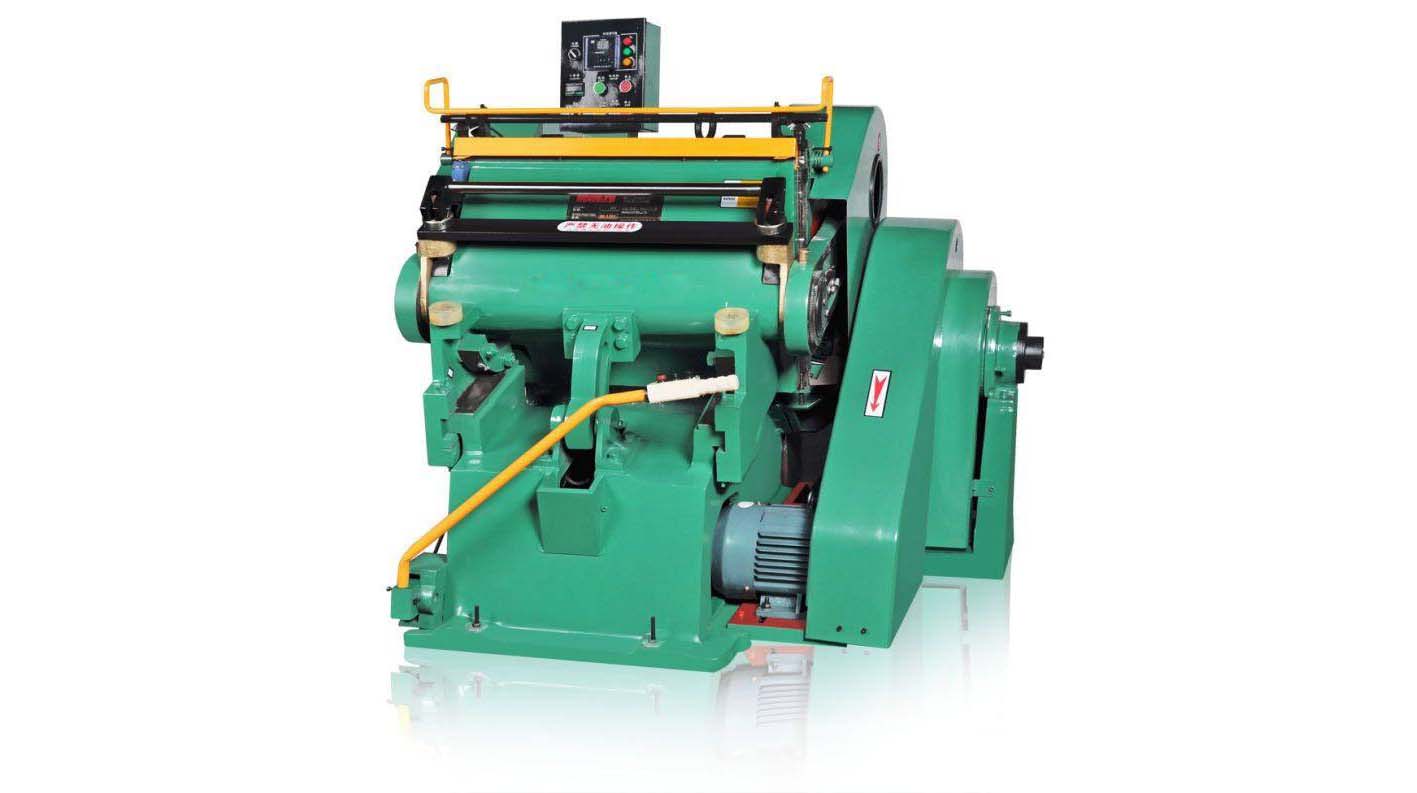

DC Semi-automatic creasing and die cutting machine

Inquiry    Download PDF

DC Semi-automatic creasing and die cutting machine, die cutter

• Description
• Parameter
• Feature & Gallery
• Videos

• Application for:

  Creasing and die cutting papers, cardboards, corrugated paper, PVC, EVA, leather etc. for making packing boxes, table mats, stickers, adhesive stickers etc.  Widely used in printing, packaging industries.

  • Molds Samples:

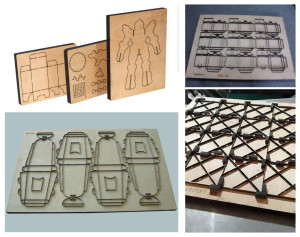

  creasing and die cutting molds



  • Finished Product Samples:









• Model	DC75	DC93	DC110	DC120	DC130	DC140	DC150	DC160	DC180	DC200
  Working size	750×520mm	930×670mm	1100×800mm	1200×820mm	1300×920mm	1400×1000mm	1500×1050mm	1600×1250mm	1800×1280mm	2000×1400mm
  Production Speed	26±2 times/min	23±2 times/min	22±2 times/min	22±2 times/min	15±3times/min	15±3 times/min	15±3 times/min	13±3 times/min	13±2 times/min	12±2 times/min
  Power	2.2kw-6H 380V	3kw-6H 380V	4kw-6H 380V	4kw-6H 380V	5.5kw-4H 380V	7.5kw-4H 380V	7.5kw-4H 380V	15kw-6H 380V	15kw-6H 380V	15kw-6H 380V
  Weight	2000KG	3000KG	4000kg	4500kg	5600KG	6500KG	7500KG	13500KG	14200KG	15500KG
  Dimensions(L*W*H):	1500×1320×1600mm	1700×1550×1700mm	2050×2030×1700mm	2050×2030×1700mm	2250×2000×1750mm	2350×2000×1780mm	2450×2000×1850mm	2700×2200×2200mm	2900×2200×2250mm	3100×2200×2250mm
  Total CBM	3.2CBM	4.5CBM	7.1CBM	7.1CBM	7.9CBM	8.4CBM	9.1CBM	13.1CBM	14.4CBM	15.4CBM

• Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.



  1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
     2. Flywheel is with big moment of force and large pressure.
     3. High strength due to one piece casting by using top-ranking material for machine body.
     4. Single plate electromagnetic clutch is sensitive and reliable.
     5. With functions of single, continuous and opening dwell operation, dwell range is adjustable.
     6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.
     7. Safety system is reliable.
     8. Can equip inner and outer movable frame and centralized lubrication device.

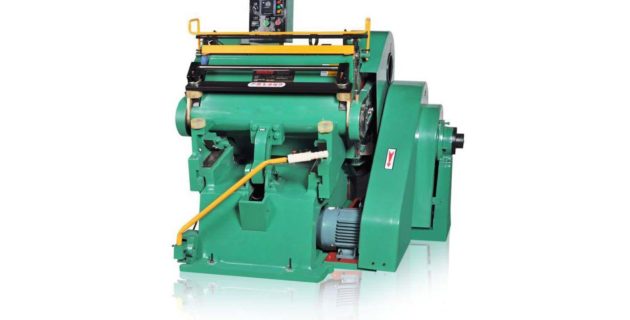

  Machine Detail Photo

•
