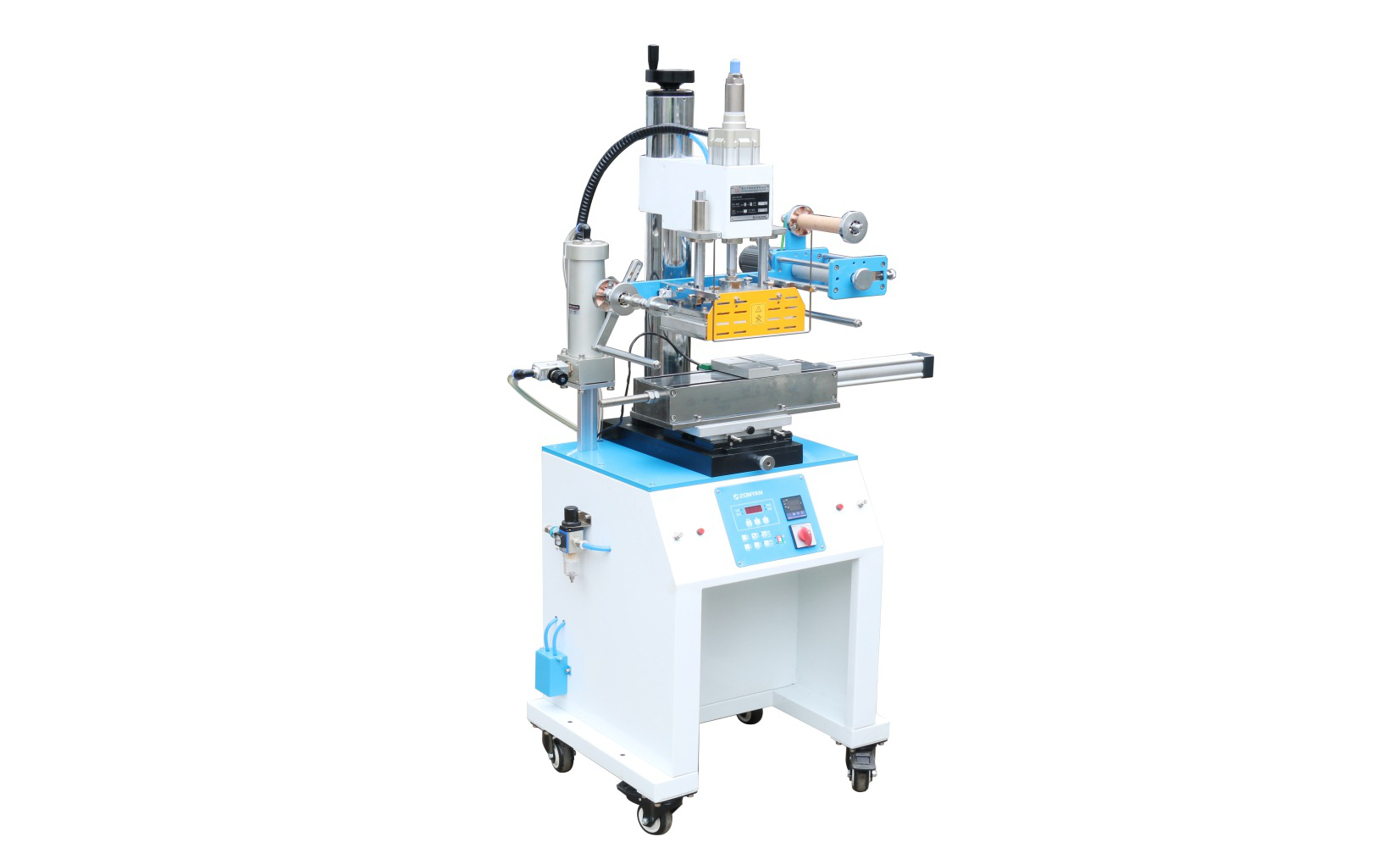

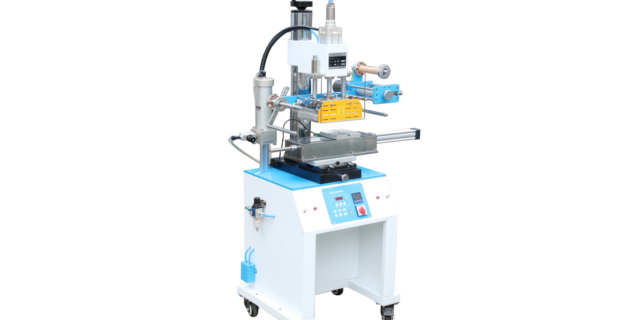

CR9 Plastic tube bottle round box hot stamping foil printing machine

Inquiry    Download Catalog

CR9 Plastic tube bottle round box hot stamping foil printing machine

• Description
• Parameter
• Videos

• Application

  Hot stamping, foil printing on circular arc surface, including plastic tube, bottles, round cardboard boxes, etc. for Leather, PU, cardboard, wooden, nylon, PVC, PP, PET, ABS, PA, PC etc.

  Feature

  1. Adopts pneumatic automatic on principle.
  2. Accurately control the stamping time.
  3. Printing surface can be Fine-tuning with advanced lines.
  4. High-precision design can save the use of anodized aluminum, and to the greatest extent possible.







• Model	CR9
  Hot stamping area	230*150mm
  Speed	10-60time/min
  Height range	0-300mm
  Delayed	0-15sec
  Temperature	MAX300℃
  Power	1KW
  Power input	220V/60HZ, can be customerized
  Net weight/Gross weight	138KG/158KG
  Dimensions(L*W*H):	850x550x1530mm
  Packing	1100x750x1920mm
