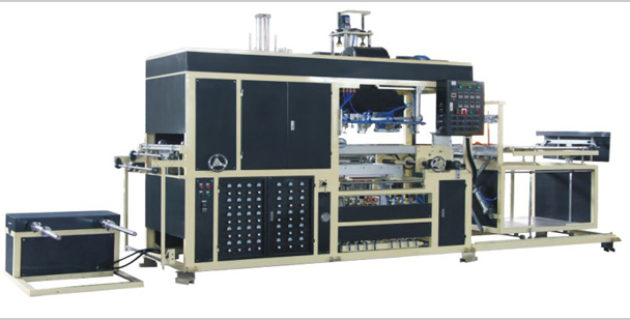

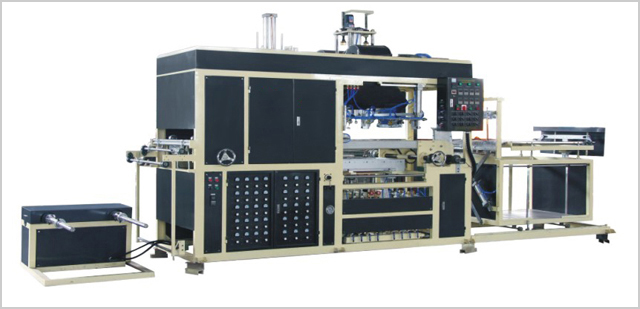

ABF61 Automatic high-speed Blister Forming VACUUM FOAMING Machine
- Application

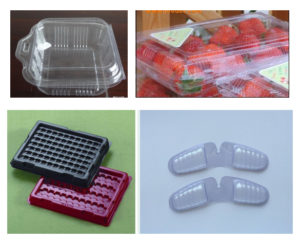

Automatic high-speed Duplex Blister Forming Vacuum Foaming Machine, for Making different sizes and shape of plastic collar butterflies, blister boxes, trays in PVC, ABS,EPS,PP,PS,PVC,PETG,APET,HIPS material etc.
- Feature
1.Vibration stripping, can be produced under the vibration mode, two upper die finished product can protect ejection of shape and not broken. The end of the wind can be used manually to play model, will not be deformed, will not make the mold damage.
2. Electric furnace around the closure, the use of cotton insulation to heat loss and minimum thermal insulation than other similar models save about 40%
3. Have delayed the vacuum function, the second vacuum function, the second on the mode functions.
4. Unilateral regulation beam.
5. Horizontal or vertical puller to pull the piece, with a pull-chip speed, pull the piece stability, pull a little piece precision.
6. This machine is 61-in-one models, die plate can be arbitrarily chosen in the 410/610.Finished products
Parameter
Model
ABF61 Molding width 560mm/610mm Forming Length 400mm/850mm Forming height 180mm Production Efficiency 220-500 times / hour Power 12kw - 15kw / h Voltage 380V-220V 50HZ (three-phase four-wire ), OR customized Air pumps requirement 15HP, 11.5KW After-sales Service Provided
24h Online Engineers Service
Weight 3000KG Dimensions(L*W*H):
5.8*1.5*2.2m
